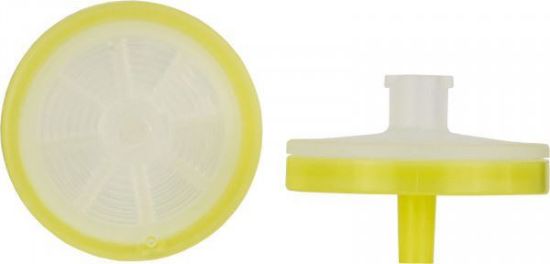

Picture of CHROMAFIL O-20/25, BIGbox 729007.400

CHROMAFIL O-20/25, BIGbox 729007.400

CHROMAFIL disposable syringe filters O-20/25 BIGbox membrane material: polytetrafluoroethylene (PTFE) pore dia.: 0.2 µm, membrane dia.: 25 mm color code above: yellow / below: colorless BIGbox of 400
SKU: 729007.400
Manufacturer: Machery Nagel
Pack Size: 400

CHROMAFIL disposable syringe filters O-20/25 BIGbox membrane material: polytetrafluoroethylene (PTFE) pore dia.: 0.2 µm, membrane dia.: 25 mm color code above: yellow / below: colorless BIGbox of 400

Inside the syringe filter polytetrafluoroethylene is used as membrane material. The hydrophobic PTFE membrane is very resistant towards all kinds of solvents as well as acids and bases. Flushing with alcohol, followed by water, makes the originally hydrophobic membrane more hydrophilic. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Selling unit100 pieces, 400 pieces
MethodFiltration
BrandCHROMAFIL
TypeSyringe filter, color coded
Housing typeWheel-like shaped housing
HardwarePolypropylene (PP) housing with filter membrane
Membrane typePolytetrafluoroethylene (PTFE)
Membrane propertiesHydrophobic
Filter type25 mm
Effective membrane diameter*22 mm
Membrane pore size0.2 µm
Code typeColor coded
Color code (top)Yellow
Color code (bottom)Colorless
InletLuer lock (top)
OutletLuer tip (bottom)
Sample volume5-100 mL
Recommended application(s)Nonpolar samples, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC, …, Very resistant towards all kinds of solvents as well as acids and bases
SterileNo
Binding capacity (proteins)Moderate–high
Dead volume80 µL
Effective filtration area*3.8 cm²
Storage temperature15–25 °C / 59–77 °F
Hazardous materialNo
Remark*Standardized measurement since Mai 2023. The product has not been modified.
Attribute nameAttribute value
Pack Size400
MediaPTFE
Pore Size0.2um
Diameter25mm
TypeNon-Sterile
