EC 4/3 NUCLEODEX BETA-OH 721171.30

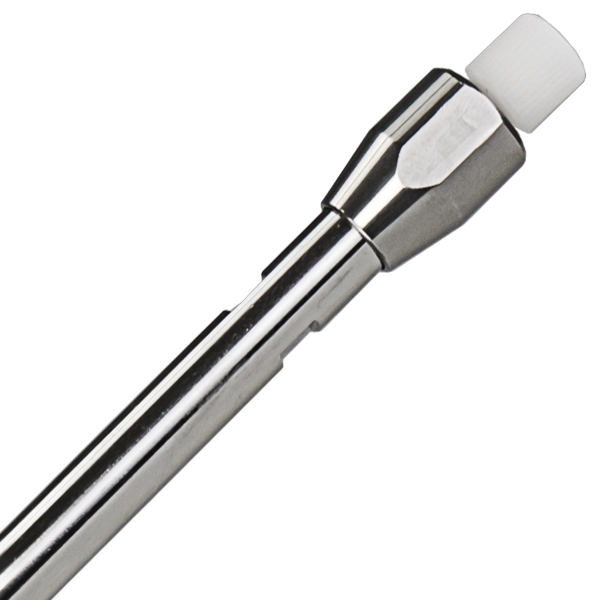

HPLC guard column EC 4/3 NUCLEODEX BETA-OH length: 4 mm, ID: 3 mm pack of 1 - require Column Protection System guard column holder (REF 718966) - for analytical columns with 3, 4 and 4.6 mm ID
SKU: 721171.30
Manufacturer: Machery Nagel

For protection of your main HPLC column from contamination, it is recommended to use guard columns. These short columns are placed into a guard column holder. The guard column holder in combination with a guard column inside is installed between the injector and the HPLC column. This installation prevents chemical impurities to reach the main column. Because a contamination could form an irreversible bond with the column packing material (stationary phase) and this can result in shorter column life. If you want to prolong the lifetime of your main column, then these short columns can help you.

MethodHPLC, analytical
BrandNUCLEODEX
Base materialNUCLEOSIL - the standard silica
PhaseNUCLEODEX BETA-OH
USP listingL45
Surface chemistryβ-cyclodextrin (chiral selector) modification
ModeSpecial application or diverse
TypeEC HPLC guard column (analytical)
HardwareStainless steel
Column length4 mm
Column inner diameter3 mm
Particle typeFully porous particles (FPP)
Particle shapeSpherical
Particle size5 µm
Eluent in HPLC columnCH₃OH (methanol) – 0.1 % TEAA (triethylammonium acetate), pH 4 (55/45, v/v)
Recommended application(s)Guard column, ideal protection for your main column, HPLC
EndcappedNo
Carbon contentNot available or proprietary
pH stability3.0–8.0
Pore size100 Å
Specific surface according to BET350 m²/g
Temperature stability (max)50 °C
Pressure stability (max)400 bar / 5800 psi
Storage temperature15–25 °C / 59–77 °F
Scope of delivery1x analytical HPLC guard column
Gross weight (incl. packaging)19.1 g / 0.04 lbs
Packaging dimensions73 x 73 x 20 mm / 2.87 x 2.87 x 0.79 Inch
Hazardous materialNo
Attribute nameAttribute value
MethodHPLC, analytical
BrandNUCLEODEX
PhaseBETA-OH
Column Size4x3mm
Particle size5 µm
