| Method | HPLC, analytical |
| Brand | NUCLEOSIL |
| Base material | NUCLEOSIL - the standard silica |
| Phase | NUCLEOSIL C18 Nautilus 100-5 |
| USP listing | L1, L60 |
| Surface chemistry | Octadecyl phase (C18, ODS) modification, with embedded polar group (PEG) |
| Mode | Reversed phase (RP) |

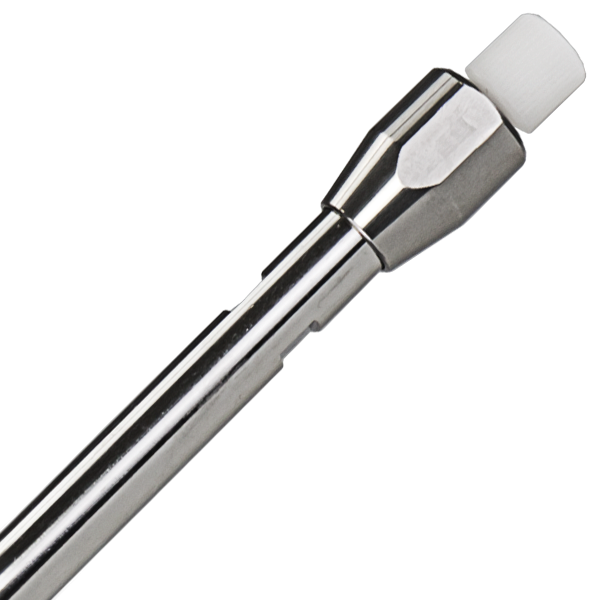

| Type | EC HPLC guard column (analytical) |
| Hardware | Stainless steel |
| Column length | 4 mm |
| Column inner diameter | 3 mm |
| Particle type | Fully porous particles (FPP) |
| Particle shape | Spherical |
| Particle size | 5 µm |
| Eluent in HPLC column | Acetonitrile – water |
| Recommended application(s) | Guard column, ideal protection for your main column, HPLC |
| Endcapped | Yes |
| Carbon content | 16.0 % |
| pH stability | 2.0–8.0 |
| Pore size | 100 Å |
| Specific surface according to BET | 350 m²/g |
| Temperature stability (max) | 60 °C |
| Pressure stability (max) | 400 bar / 5800 psi |
| Storage temperature | 15–25 °C / 59–77 °F |
| Scope of delivery | 3x analytical HPLC guard columns |
| Gross weight (incl. packaging) | 23 g / 0.05 lbs |
| Packaging dimensions | 115 x 60 x 28 mm / 4.53 x 2.36 x 1.10 Inch |
| Hazardous material | No |
