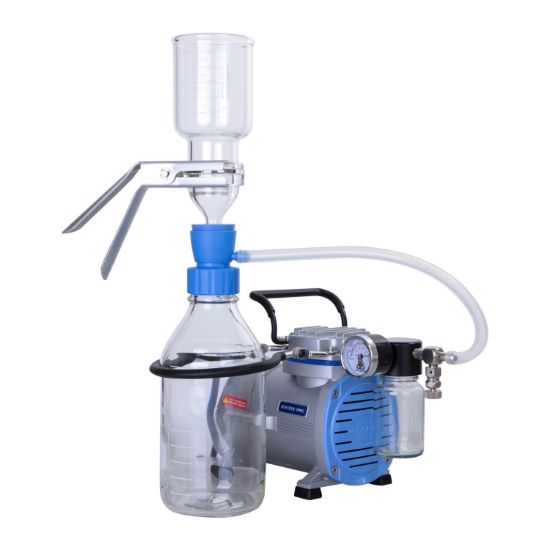

Picture of 189302-22 Rocker 300C - VF 12, Vacuum Filtration System

189302-22 Rocker 300C - VF 12, Vacuum Filtration System

New Rocker 300C-VF12, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 189302-22
Manufacturer: Rocker

Rocker Oil-free Vacuum Pump Specification

Rocker 300C: 220V, 50Hz
▸ Max. power: 60W
▸ Max. current: 0.3A
▸ Max. vacuum: 99 mbar abs.
▸ Max. flow rate: 20 L/min
▸ Noise level: 50 dB
▸ Hose barb: ID8
▸ Moisture trap: Yes
▸ Vacuum regulator: Yes
▸ Thermal protection: Yes

VF 12 Glass Filtration Apparatus Specification

MaterialSpecification
▸ Funnel – Borosilicate glass
▸ Support base – Borosilicate glass
▸ Membrane support – Sintered glass
▸ Clamp – Aluminum
▸ Stopper – Silicone rubber (No.8)
▸ Filtration adaptor – PP
▸ Storage bottle – Borosilicate glass		▸ Funnel capacity: 300 ml
▸ Storage bottle capacity: 1000 ml
▸ Filter diameter: 47 mm
▸ Hose barb: ID8 (5/16 inch)

Solvent Filtration System Ordering Information

Part NumberDescription
189302-11(22)Rocker 300C – VF 12, Solvent Purification System Includes :
▸ Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump
▸ VF 12, Glass Filtration Set
▸ Silicone Tube
189300-11(22)Rocker 300C, PTFE Coated Chemical Resistant Vacuum Pump AC110V, 60Hz (AC220V, 50Hz)
167200-12VF 12, Glass Filtration Set
167120-31Glass filter holder, 300 mL
197000-59Glass storage bottle, 1000 mL

Solvent Filtration System Features

Oil-free & care-free
Rocker 300C pumps are driven by diaphragm that needs no lubricant, making them maintenance-free and oil-mist-free.
Chemical resistant
Rocker 300C are resistant in different degrees to wide range of chemicals and solvents.
One-step filtration
Filter and store directly in all GL45 bottles to prevent repetitive transfers and cross-contamination.
Hoop Holder
Equipped with Rocker Spill-free Hoop Holder, keeping the bottles in place and make lab safer.
Attribute nameAttribute value
ModelVF 12
Funnel Capacity300ml
Flask/Bottle Capacity1000ml
Filter diameter47mm
