180611-22-T MultiVac 610-MS-T Vacuum Filtration System,

SKU: 180611-22-T
Manufacturer: Rocker



Rocker 400 Specification (220V, 50Hz)
▸ Max. power: 80W
▸ Max. current: 0.4A
▸ Max. vacuum: 105 mbar abs.
▸ Max. flow rate: 34 L/min
▸ Vacuum regulator: Yes
▸ Overflow protection: Yes
▸ Filter cartridge: Yes
▸ Thermal protection: Yes
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/6 HP
▸ Noise level: 52 dB
▸ Hose barb: ID8
MultiVac 610-MS Specification
▸ Number of branch: 6
▸ Filter diameter: 47 mm
▸ Material contact with filtrate: Aluminum
Part NumberDescription

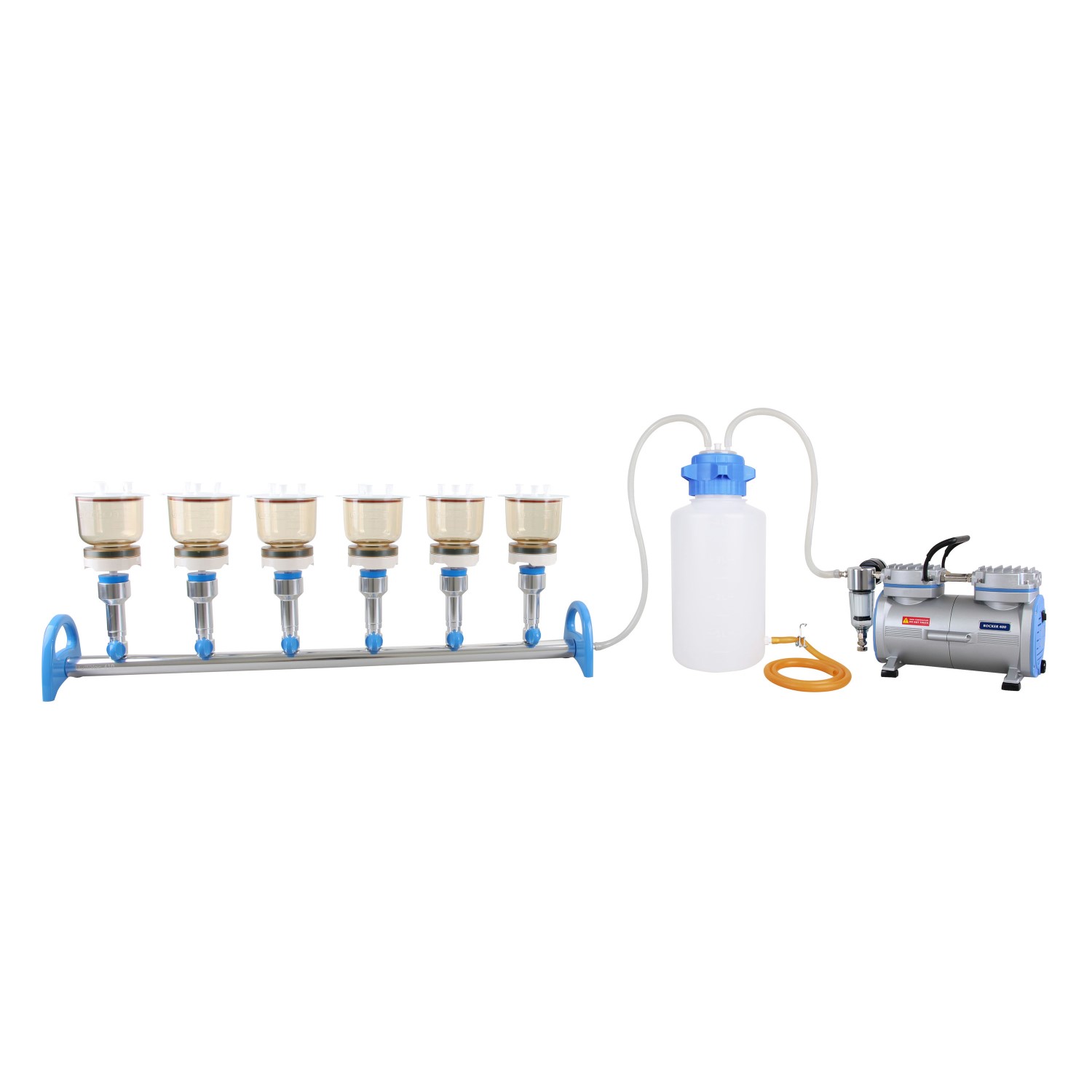

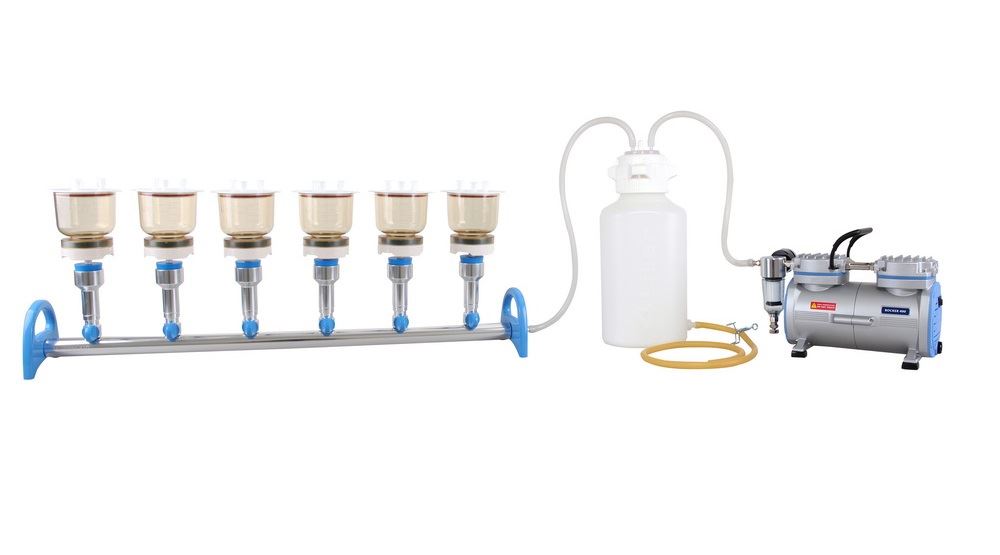

180611-11(22)-TMultiVac 610-MS-T Vacuum Filtration System, complete set includes :
▸ Rocker 400, Oil Free Vacuum Pump
▸ MultiVac 610-MS, 6 Places Aluminum Manifold
▸ MF 3, 300 ml Magnetic Filter Holder (6 pcs)
▸ 4000 ml PP Vacuum Bottle with drain
▸ Silicone Tube (1m x 2pcs)
200300-01MF 3, 300 ml Magnetic Filter Holder with lid kit (optional)
200500-01MF 5, 500 ml Magnetic Filter Holder with lid kit (optional)

Multi-Branch Manifold System Features:

◆ For large number samples

MultiVac 610-MS-T is an economical model for large sample filtration. It includes vacuum pump, manifold, waste bottle and magnetic filter holders.

◆ Light and handy aluminum design

All parts of the manifold are made of aluminum which is light, cost-effective and autoclavable. Each component can be easily removed for cleaning and autoclaving.

◆ Magnetic filter holder is included

Magnetic filter holder allows for one-handed operation, and can prevent the membrane from being twisted or torn.

◆ 4000 ml PP vacuum bottle with drain

The large capacity of 4000 ml vacuum bottle with drain offers convenience of collecting and draining waste solution.

Youtube Video :

MultiVac Series Stainless Steel Multi-Branch Manifold

Youtube Video :

[Rocker 3-Minute Classroom] Total Suspended Solid Test



Attribute nameAttribute value
ModelMultiVac 610 - MS
Num of branch6
Filter diameter47mm
Funnel Capacity300ml
