180311-22-T MultiVac 310-MS-T Vacuum Filtration System

New MultiVac 310-MS-T, Vacuum Filtration System, AC220V, 50Hz
SKU: 180311-22-T
Manufacturer: Rocker
Rocker 400 Specification (220V, 50Hz)
▸ Max. power: 80W
▸ Max. current: 0.4A
▸ Max. vacuum: 105 mbar abs.
▸ Max. flow rate: 34 L/min
▸ Vacuum regulator: Yes
▸ Overflow protection: Yes
▸ Filter cartridge: Yes
▸ Thermal protection: Yes
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/6 HP
▸ Noise level: 52 dB
▸ Hose barb: ID8
MultiVac 310-MS Specification
▸ Number of branch: 3
▸ Filter diameter: 47 mm
▸ Material contact with filtrate: Aluminum

Multi-Branch Manifold System Ordering Information

Part NumberDescription

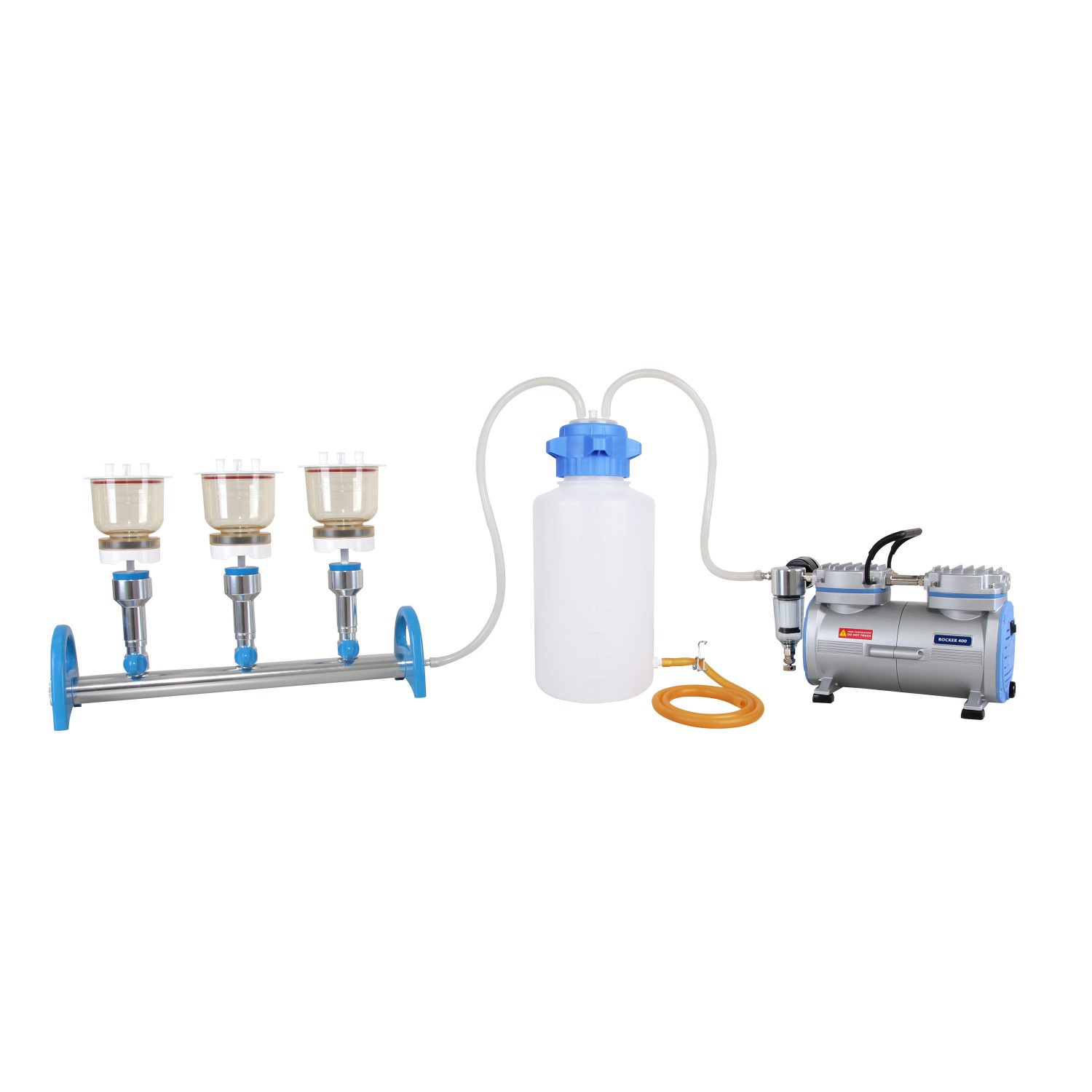

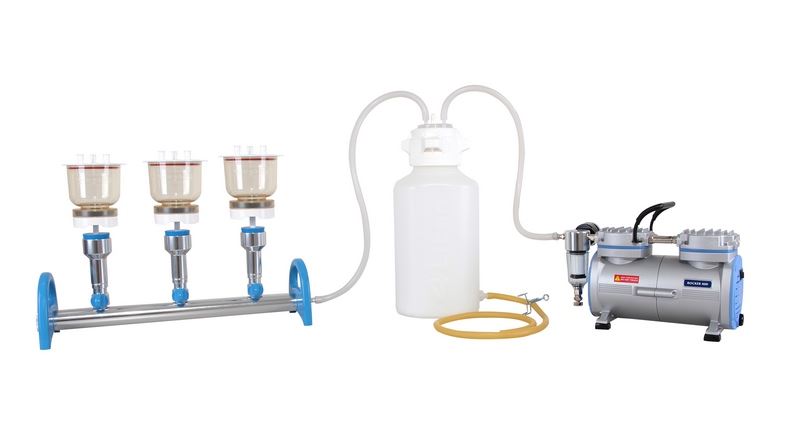

180311-11(22)-TMultiVac 310-MS-T Vacuum Filtration System includes :
▸ Rocker 400, Oil Free Vacuum Pump
▸ MultiVac 310-MS, 3-Places Aluminum Manifold
▸ MF 3, 300 ml Magnetic Filter Holder (3 pcs)
▸ 4000 ml PP Vacuum Bottle with drain
▸ Silicone Tube (1m x 2pcs)
200300-01MF 3, 300 ml Magnetic Filter Holder with lid kit (optional)
200500-01MF 5, 500 ml Magnetic Filter Holder with lid kit (optional)

Multi-Branch Manifold System Features:

  • For large number of samples
    MultiVac 310 – MS – T is an economical kit for filtration with large number samples.
  • Light and handy
    This aluminum-made manifold is light, cost-effective and autoclavable. Each component can be easily removed for cleaning and autoclaving.
  • Magnetic filter holders are included
    Magnetic filter holder allows for one-handed operation and can prevent the membrane from being twisted or torn.
  • 4000 mL PP vacuum bottle with drain
    The large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining liquid waste.



Youtube Video :

MultiVac Series Stainless Steel Multi-Branch Manifold

Youtube Video :

[Rocker 3-Minute Classroom] Total Suspended Solid Test

Attribute nameAttribute value
ModelMultiVac 310 - MS
Num of branch3
Filter diameter47mm
MaterialAluminum
Funnel Capacity300ml
