167311-22 Rocker 300 - MF 31, Vacuum Filtration

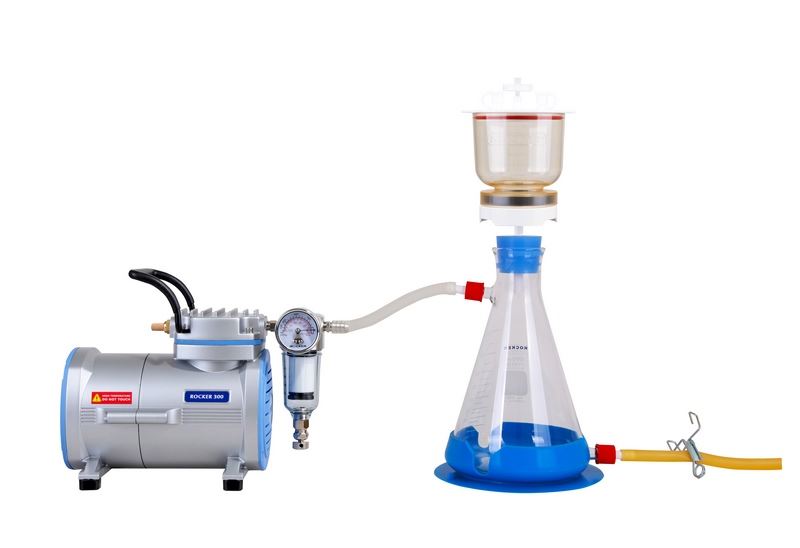

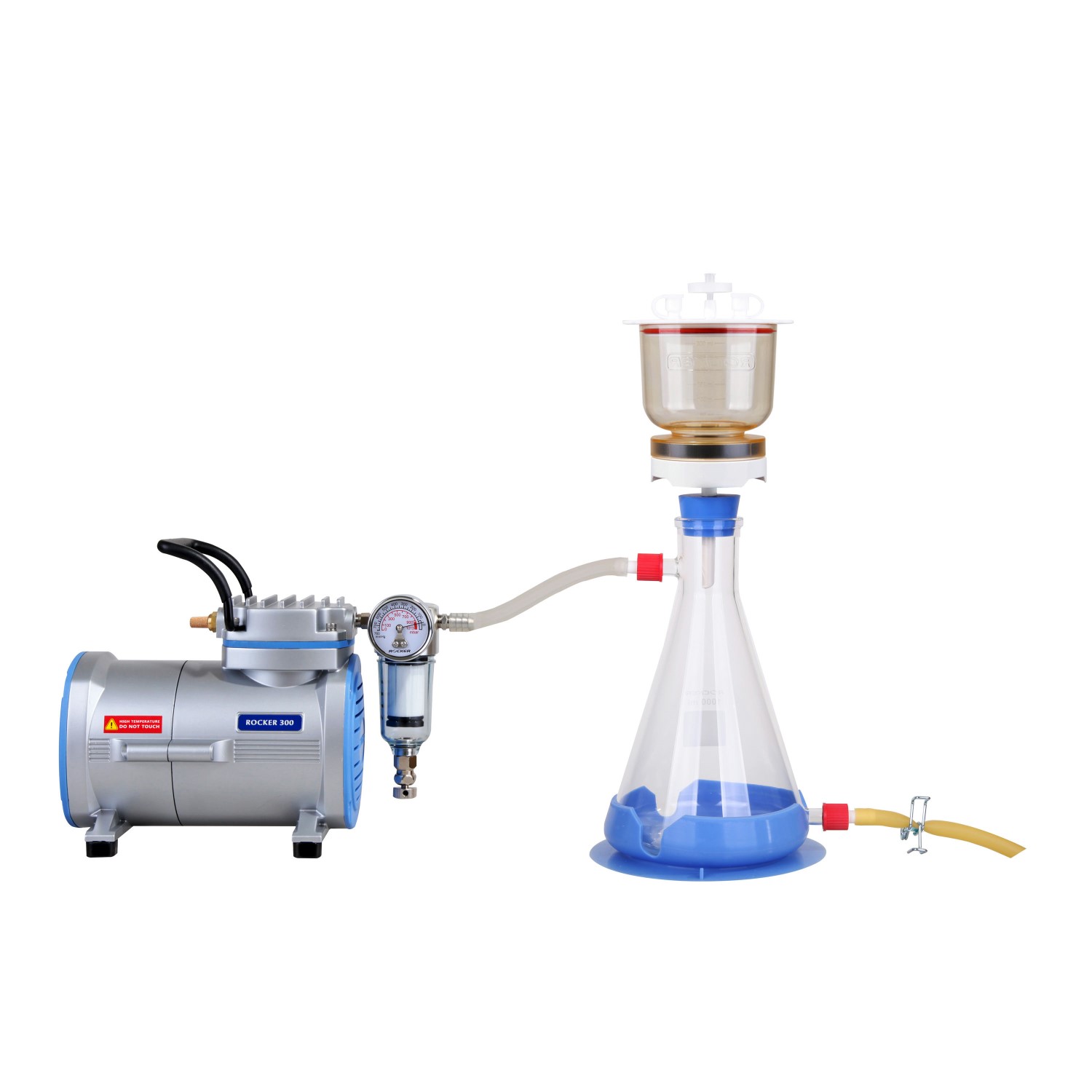

Rocker 300-MF31, Vacuum Filtration System, AC220V, 50Hz with EU plug
SKU: 167311-22
Manufacturer: Rocker

Rocker 300-MF 31 Vacuum Filtration System Includes

  • Rocker 300 Oil Free Vacuum Pump
  • MF 31 Filtration Set
  • Silicone Tube (1 m)

 Rocker 300 Oil-free Vacuum Pump Specification

Rocker 300: 220V/50Hz
▸ Max. power: 60W
▸ Max. current: 0.3A
▸ Max. vacuum: 99 mbar abs.
▸ Max. flow rate: 20 L/min
▸ Motor rotation speed: 1450 RPM
▸ Horse power: 1/8 HP
▸ Noise level: 50 dB
▸ Hose barb: ID8 (5/16 inch)
▸ Vacuum Regulator: Yes
▸ Overflow protection: Yes
▸ Thermal protection: Yes

Filtration System Ordering Information

Product Part NumberProduct

167311-11

167311-22

Rocker 300 – MF 31, Vacuum Filtration System, complete set includes:
* Rocker 300, Vacuum Pump
* MF 31, Filtration Set
* Silicone Tube (1m)

Vacuum Filtration System Features

  • Oil-free & care-free
    Rocker pumps are driven by piston that needs no lubricant, making them maintenance-free and oil-mist-free.
  • Clamp-free with magnet
    MF 31 bottles are equipped with patented magnetic MF filter holders. Its strong magnetic seal enables one-hand and clamp-free operation.
  • Drain out directly
    MF 31 can drain the filtrate away directly without disassembly.

Youtube Video :

[Rocker 3-Minute Classroom] Total Suspended Solid Test



Attribute nameAttribute value
ModelMF 31
Funnel Capacity300ml
Flask/Bottle Capacity1000ml
Filter diameter47mm
