Syringe Filter DISMIC 13mm 0.45 ACETATE NONSTERILE 100/PK 13CP045AN

Syringe Filter DISMIC 13mm 0.45 ACETATE NONSTERILE 100/PK
SKU: 13CP045AN
Manufacturer: Advantec
Pack Size: 100

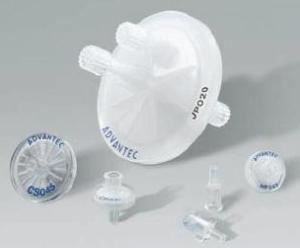

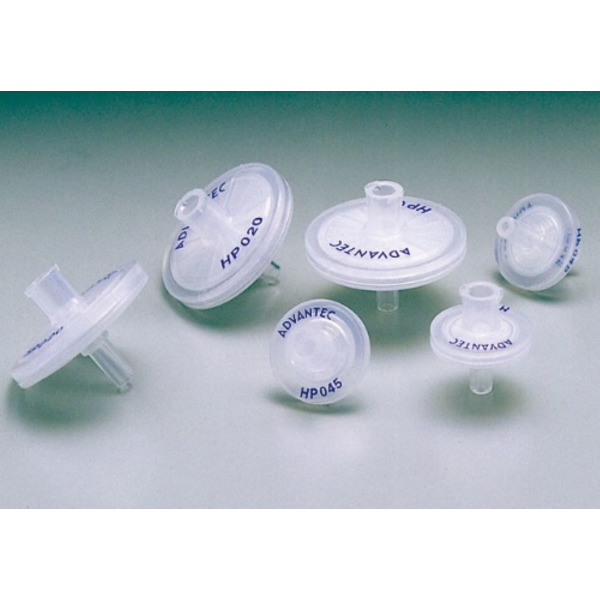

Disposable Syringe Filter Units – DISMIC/LABODISC

  • Minimum sample hold-up: Unit housings are specifically designed to maximize sample recovery
  • High purity: Non-pigmented housing and integral filter sealing assure that filtrates will not be adulterated due to pigment, dye, or adhesives leaching into the filtrate
  • Convenient: Each unit is clearly marked with an identifying code to denote pore size, membrane material and housing polymer
  • Sterile: Units can be purchased pre-sterilized and individually packaged, or non-sterile in bulk pack
  • All polypropylene can be autoclaved Acrylic can not be autoclaved
13mm diameter

Cellulose Acetate

0.20

Polypropylene

100

13CP020AN

13CP020AS

0.45

Polypropylene

100

13CP045AN

13CP045AS

PTFE, Hydrophilic

0.20

Polypropylene

100

13HP020AN

-

0.45

Polypropylene

100

13HP045AN

-

PTFE Hydrophilic for Ion Chromatography

0.20

Polypropylene

50

13HP020CN

-

0.45

Polypropylene

50

13HP045CN

-

PTFE, Hydrophobic

0.20

Polypropylene

100

13JP020AN

-

0.50

Polypropylene

100

13JP050AN

-

NYLON

0.20

Polypropylene

100

13NP020AN

-

0.45

Polypropylene

100

13NP045AN

-

Mixed Cellulose Esters (MCE)

  • Properties: A hydrophilic membrane
  • Higher protein binding than cellulose acetate for most proteins
  • High porosity provides a high flow rate

Cellulose Acetate (Acetate)

  • Standard: A commonly used hydrophilic membrane
  • Low protein binding, suitable for aqueous protein solutions
  • Nitrate-free, suitable for groundwater filtration
  • Housing material: polypropylene (3, 13, 50 mm) or styreneacrylonitrile (25 mm)

PTFE, hydrophilic

  • Versatile: Good chemical resistance
  • Compatible with many solvent mixtures used in HPLC, e.g. Acetonitrile/Water
  • Model for Ion Chromatography with the lowest levels of extractables is available.

PTFE, hydrophobic

  • Application: use as vent

NYLON

  • Properties: Naturally hydrophilic membrane
  • Low extractables without wetting agent

PES

  • Low protein binding & extractables
  • Pre-sterilized by Gamma irradiation





DISMIC

LABODISC

Diameter

3 mm

13 mm

25 mm

50 mm

Housing material

-

PP

PP

PP

Acrylic

PP

Filtration Area

cm2

0.06

0.9

4.0

4.0

19.6

Hold-up Volume

mL

< 0.01

< 0.03

< 0.1

< 0.1

< 3.0

Suggested capacity per filter unit

mL

< 2 mL

< 10 mL

< 100 mL

< 100 mL

>100 mL

Pressure limit

MPa

0.51

0.51*

0.51*

0.51

0.34

psi

74

74*

74*

74

49

Maximum Operating Temperature

°C

60

60

60

45

60

°F

140

140

140

113

140

Connections

-

Inlet: female luer-lock outlet: male luer slip

7–13.5 mm

hose barb

with male luer slip

Attribute nameAttribute value
TypePP housing
MediaCA/Cellulose Acetate
Pore Size0.45um
Diameter13mm
Pack Size100
