Cell Culture Insert, PET Membrane
Individually packaged in peelable Tyvek film and Blister, sterile.

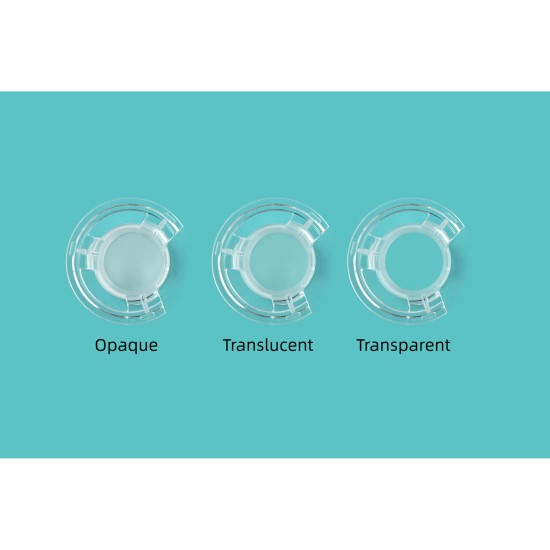

TC Treated Cat.NO. | Non-Treated Cat.NO. | Description | Pore Size (μm) | Membrane Transparence | Insert Packing | Plate Packing |
723121 | 723131 | 6 Cell Culture Inserts + 6 Well Plate | 0.4 | Opaque | 6 | 24 |
724121 | 724131 | 12 Cell Culture Inserts + 12 Well Plate | 0.4 | Opaque | 12 | 48 |
725121 | 725131 | 12 Cell Culture Inserts + 24 Well Plate | 0.4 | Opaque | 12 | 48 |
723021 | 723031 | 6 Cell Culture Inserts + 6 Well Plate | 3.0 | | 6 | 24 |
724021 | 724031 | 12 Cell Culture Inserts + 12 Well Plate | 3.0 | | 12 | 48 |
725021 | 725031 | 12 Cell Culture Inserts + 24 Well Plate | 3.0 | Translucent | 12 | 48 |
New addition: 1μm & 8μm PET Membrane
TC Treated Cat.NO. | Non-Treated Cat.NO. | Description | Pore Size (μm) | Membrane Transparence | Insert Packing | Plate Packing |
723421 | 723431 | 6 Cell Culture Inserts + 6 Well Plate | 1.0 | Opaque | 6 | 24 |
724421 | 724431 | 12 Cell Culture Inserts + 12 Well Plate | 1.0 | Opaque | 12 | 48 |
725421 | 725431 | 12 Cell Culture Inserts + 24 Well Plate | 1.0 | Opaque | 12 | 48 |
723321 | 723331 | 6 Cell Culture Inserts + 6 Well Plate | 8.0 | | 6 | 24 |
724321 | 724331 | 12 Cell Culture Inserts + 12 Well Plate | 8.0 | | 12 | 48 |
724321 | 724331 | 12 Cell Culture Inserts + 24 Well Plate | 8.0 | | 12 | 48 |
packing specification | Inserts/plate | Insert Diameter(mm) | Volume of Each Well (mL) | Inner Volume of Insert (mL) | Membrane Growth Area of Insert (cm²) |
6 | 6 inserts/6well | 24 | 2.6 | 1.5 | 4.67 |
12 | 12 inserts/6well | 12 | 1.5 | 0.5 | 1.12 |
24 | 12 inserts/6well | 6.5 | 0.6 | 0.1 | 0.33 |
100mm dish | 1 inserts/6well | 75 | 13 | 9 | 44 |
Pore Size of Membrane (μm) | Pore Density(well/cm²) |
0.4 | 1x108 |
1.0 | 2x107 |
3.0 | 2x106 |
5.0 | 4x105 |
8.0 | 1x105 |
Application:
Permeable supports, also known as cell culture inserts, are an essential tool for the study of both anchorage-dependent and independent cell lines.
This product produce a cell culture environment that closely resembles an in vivo state. Allow polarized cells to carry out metabolic activities in a more natural manner because the cells feed both apically and basolaterally.
Application: co-culture, epithelial cell polarity, migration, invasion, transport and permeability studies.
Product Feature:
·Innovative hanging design facilitates pipetting.
·Supplied in multiple well plates: 6-well, 12-well, 24well.
·PC membrane: low adsorption rate, reducing the loss of small molecular proteins and other compounds
·The PET membrane is not easy to be torn or curled, and it is easy to operate when taking out the chamber.
·Compatible with most solvents used for fixing and dyeing.
