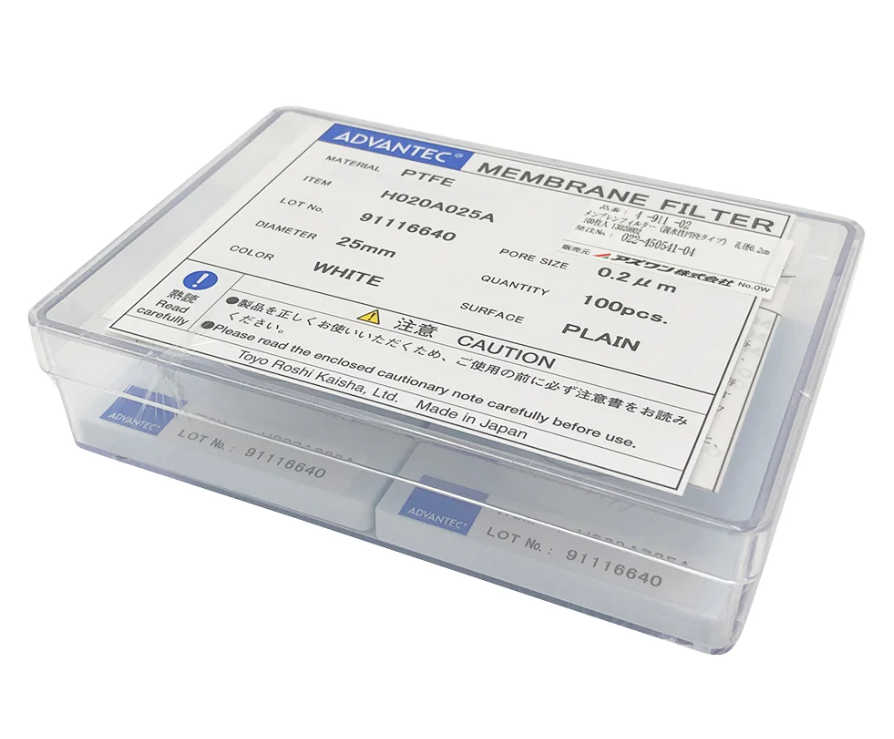

Membrane Filter PTFE/PHILIC 0.20 25mm 100/PK H020A025A

Membrane Filter PTFE/PHILIC 0.20 25mm 100/PK

SKU: H020A025A

Manufacturer: Advantec

Pack Size: 100

Hydrophilic PTFE

Characteristics: Maximum chemical and pH resistance
High flow rates with minimal aqueous extractable (<0.3 wt%)
Optically clear when wet with water
Non-supported
Thermostable: can be used up to 100'c

Applications

Ideal for HPLC and other mixtures of aqueous and organic solvents

HYDROPHILIC PTFE – NON-STERILE

Plain White discs

Pore Size (µm)	Diameter
	13 mm	25 mm	47 mm	90 mm	142 mm	293 mm
	package of 100			package of 25		package of 10
0.10	H010A013A	H010A025A	H010A047A	H010A090C	H010A142C	H010A293D
0.20	H020A013A	H020A025A	H020A047A	H020A090C	H020A142C	H020A293D
0.50	H050A013A	H050A025A	H050A047A	H050A090C	H050A142C	H050A293D
1.00	H100A013A	H100A025A	H100A047A	H100A090C	H100A142C	H100A293D

Pore Size (µm)	*Bubble Point 1**		*Flow Rates 2**		*Porosity 3 (%)**	Thickness (µm)	Maximum Operating Temperature (°C)
Pore Size (µm)	MPa	psi	Water (mL/min/cm2)	Air (L/min/cm2)	*Porosity 3 (%)**	Thickness (µm)	Maximum Operating Temperature (°C)
0.10	³0.38	³55.1	14	1.6	71	35	100
0.20	³0.24	³34.8	21	2.1	71	35	100
0.50	³0.14	³20.3	39	2.9	79	35	100
1.00	³0.083	³12.0	73	5.7	83	35	100

Attribute name	Attribute value
Pack Size	100
Media	PTFE
Diameter	25mm
Pore Size	0.2um
Surface	Plain
Colour	White
Type	Non-Sterile
